Davey Scuba Compressors Parts Breakdown
Crankcases

FIGURE/ITEM #

PART #



DESCRIPTION

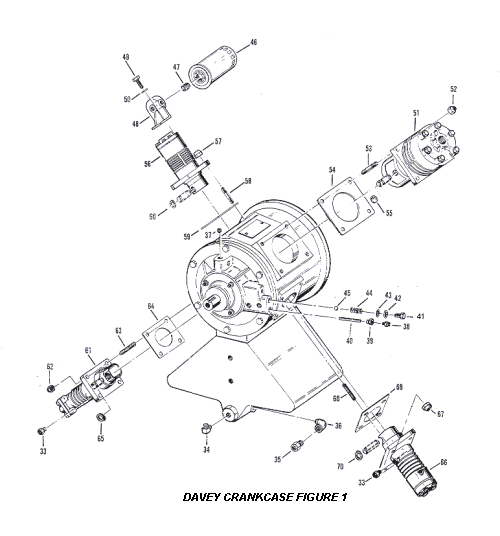

1

65158



DAVEY COMPRESSOR ASSEMBLY

1/33





REDUCER

1/34

28290



ELBOW

1/35





REDUCER

1/36





ELBOW

1/37

67871



PIPE PLUG

1/38

43024



FITTING

1/39





REDUCER

1/40

49551



PISTON SHAFT

1/41

17331



SCREW, OIL ADJUST

1/42

17330



LOCKING NUT

1/43

25047

*

SEALING GASKET

1/44

17333



SPRING, OIL REGULATOR

1/45

09515



BALL, SST, OIL REGULATOR

1/46

46704



SPIN-ON OIL FILTER

1/47

61808



PIPE NIPPLE FOR FILTER

1/48

65500



OIL FILTER HEAD

1/49





BOLT

1/50





LOCK WASHER

1/51





FIRST STAGE, click to go to

1/52





NUT, SELF LOCKING

1/53

45542



STUD

1/54

44847

*

GASKET, CYLINDER TO CRANKCASE

1/55

24803



RETAINING RING

1/56





SECOND STAGE, click to go to

1/57





NUT, SELF LOCKING

1/58

45542



STUD

1/59

44844

*

GASKET, CYLINDER TO CRANKCASE

1/60

26858



RETAINING RING

1/61





THIRD STAGE, click to go to

1/62





NUT, SELF LOCKING

1/63

45542



STUD

1/64

44844

*

GASKET, CYLINDER TO CRANKCASE

1/65

26858



RETAINING RING

1/66





FOURTH STG Cyl group,click to go to

1/66A





FOURTH STG Piston Assy,click to go to

1/66B





ALT FOURTH STG Piston Assy,click to go to

1/67





NUT, SELF LOCKING

1/68

45542



STUD

1/69

44844

*

GASKET, CYLINDER TO CRANKCASE

1/70

26858



RETAINING RING

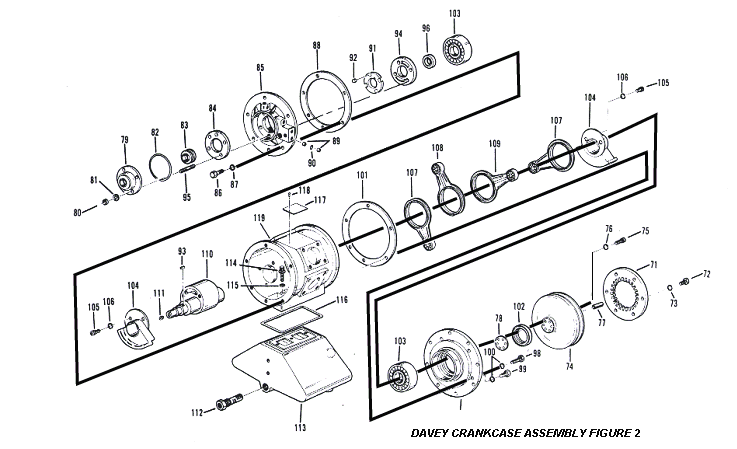

2/71

E3507A



CLUTCH, DRIVE RING

2/72





BOLT

2/73





LOCK WASHER

2/74

65155



FLYWHEEL

2/75





BOLT, SOCKET HEAD

2/76

28147



LOCK WASHER, INTERNAL TOOTH

2/77

29510



PIN, DOWEL

2/78

45003

*

GASKET, FLYWHEEL TO CRANKSHAFT

2/79

4501 2



COVER, OIL SEAL

2/80

65872



NUT, SELF LOCKING

2/81

49264



SEALING WASHER

2/82

24500

*

O-RING

2/83

43398

*

OIL SEAL, COMPLETE

2/84

45010



PUMP COVER, OUTER

2/85

65156



COVER, CRANKCASE FRONT END

2/86





BOLT

2/87





LOCK WASHER

2/88

45028

*

GASKET, FRONT COVER

2/89

49567



BUSHING, OIL PISTON

2/90

24498

*

O-RING

2/91

45018



OIL PUMP ROTOR

2/92

45019



OIL PUMP BLADE

2/93

45543



KEY, ROTOR

2/94

65152



PUMP COVER, INNER

2/95

65160



STUD

2/96

24501

*

OIL SEAL, MID

2/97

45015



COVER, CRANKCASE DRIVE END

2/98





BOLT

2/99





BOLT

2/100





LOCK WASHER

2/101

45028

*

GASKET, DRIVE END COVER

2/102

45017



OIL SEAL, FLYWHEEL

2/103

11068



CRANKSHAFT, ROLLER BEARING

2/104

65153



COUNTER WEIGHT

2/105





BOLT, SOCKET HEAD

2/106





LOCK WASHER

2/107

46514



ROD, COMPLETE 3RD & 4TH STAGE

2/108

46541



ROD, COMPLETE 2ND STAGE

2/109

44819



ROD, COMPLETE 1ST STAGE

2/110

65151



CRANKSHAFT

2/111

67871



PIPE PLUG

2/112

19189



OIL STRAINER

2/113

65181



SUMP

2/114

49263



BOLT, CAP POINT HEAD

2/115





LOCK WASHER

2/116

45027

*

O-RING, SUMP

2/117

41180



NAME PLATE

2/118





SELF TAPPING SCREW

2/119

65100



CRANKCASE











*65888



GASKET AND SEAL KIT
